Cot Grinding Machine

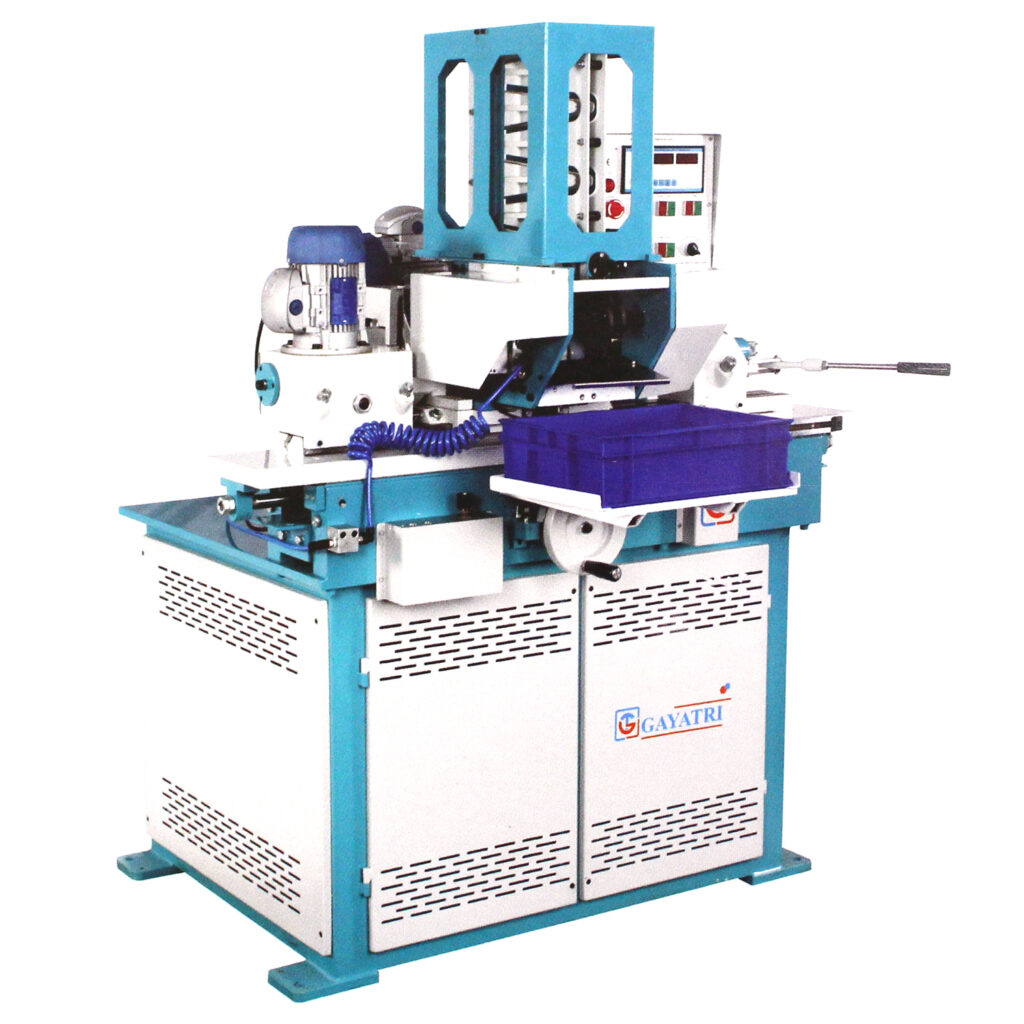

• Hydro Pneumatically Operated to Grind all type of Ring Frame and Speed Frame Top Rollers on Pneumatically Operated Centerless Grinding Attachment with 200 mm Wide Emery having Surface finish and Accuracy as per International Tolerance.

• Loading and Unloading of Top Rollers is done Automatically with Auto Feeding System, which is controlled by Digital LCD Electronic timer.

• Electronic Timer is provided to set grinding time.

• Draw frame and Comber Rollers are grinder between centre with 25 mm Wide emery stone.

• Taper roller Grinding System is provided for comber detaching roller.

• Highly Efficent Dust Extraction unit is provided.

• Designed for High Accuracy Production with Low maintenance cost.

• Extra spares and accessories provided with machine.

• Total Ele. Power Consumption – 4.5 H.P. (3.3KW).

• Production Capacity Per hour – 325 – 350 Top Rollers

• Fully hydraulically operated to grind all kinds of top rollers with surface finish / accuracy as per international standards.

• Centreless grinding attachment for Ring Frame and Speed Frame with 200 mm wide emery automatically controlled by digital timer.

• Electronic timer is provided to set the time required for arbour grinding & for replacing fresh arbour to be ground.

• Draw Frame and Comber rollers are grinded between center with 25 mm emery.

• Taper Grinding system is provided for Comber detaching roller.

• High efficient dust extraction unit provided.

• Designed for high accuracy more productivity with very less maintenance.

• Production Capacity : 275 to 300 Top Rollers of R/F & S/F per hour.

• Total Electric Power Consumption – 4.5 H.P. (3.3KW)

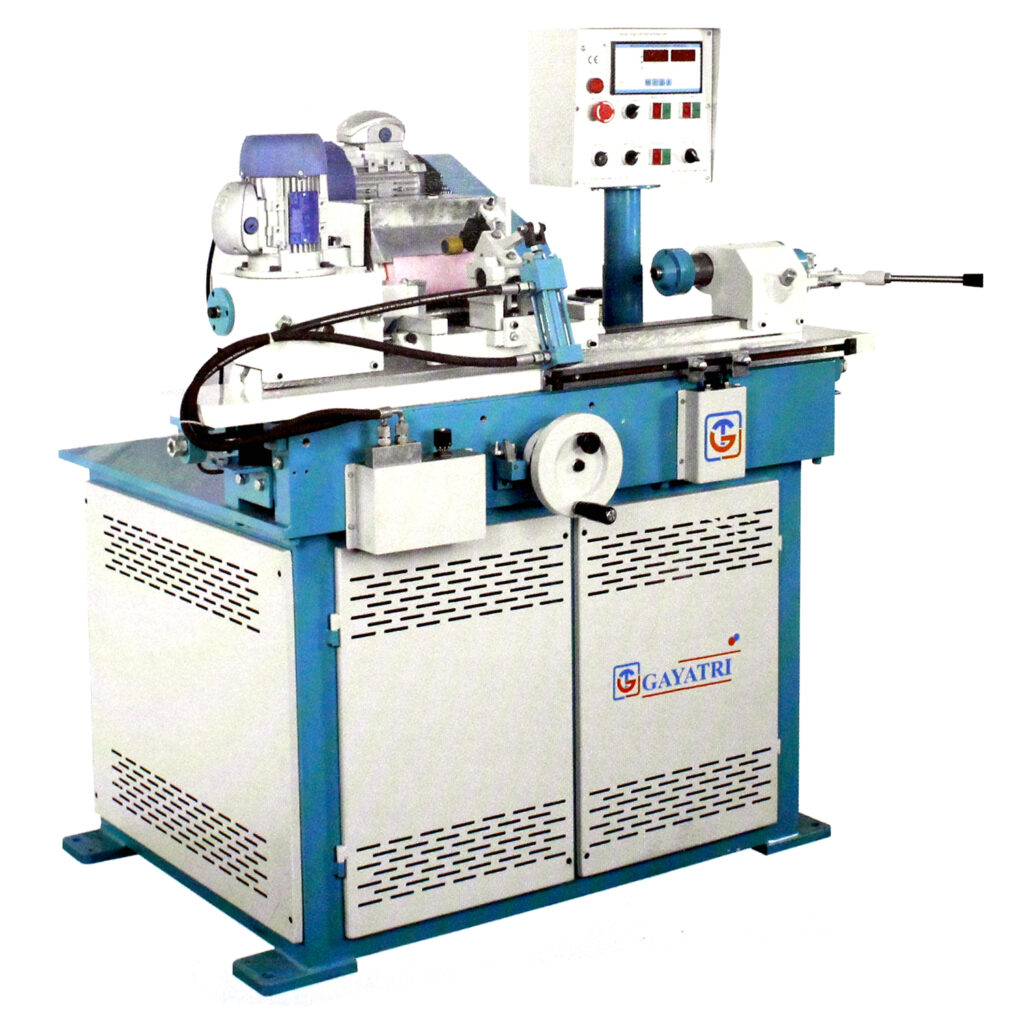

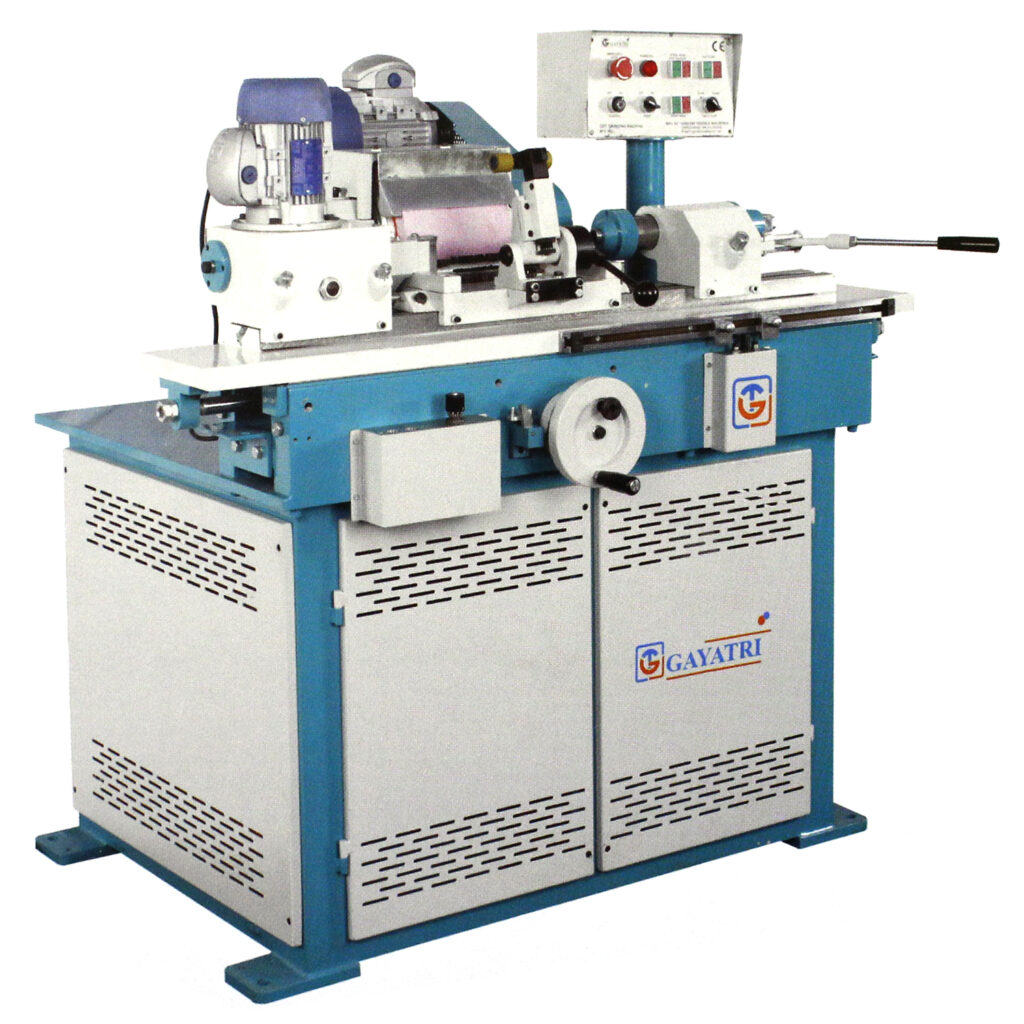

• High production cot grinding machine suitable to grind all kinds of top rollers with surface finish / accuracy as per international standards.

• Grinding of Ring Frame & Speed Frame top rollers are on 200 mm wide emery with centreless grinding attachment manually operated.

• Draw Frame and Comber rollers are grinded between center with 25 mm emery.

• Taper Grinding system is provided for Comber detaching roller.

• Machine is having hydraulically operated table traverse.

• High efficient dust extraction unit provided.

• Designed for better grinding results and high production with very less maintenance.

• Production Capacity : 250 top rollers of R/F and S/F per Hour.

• Total Ele. Power Consumption – 4.5 H.P. (3.3KW)

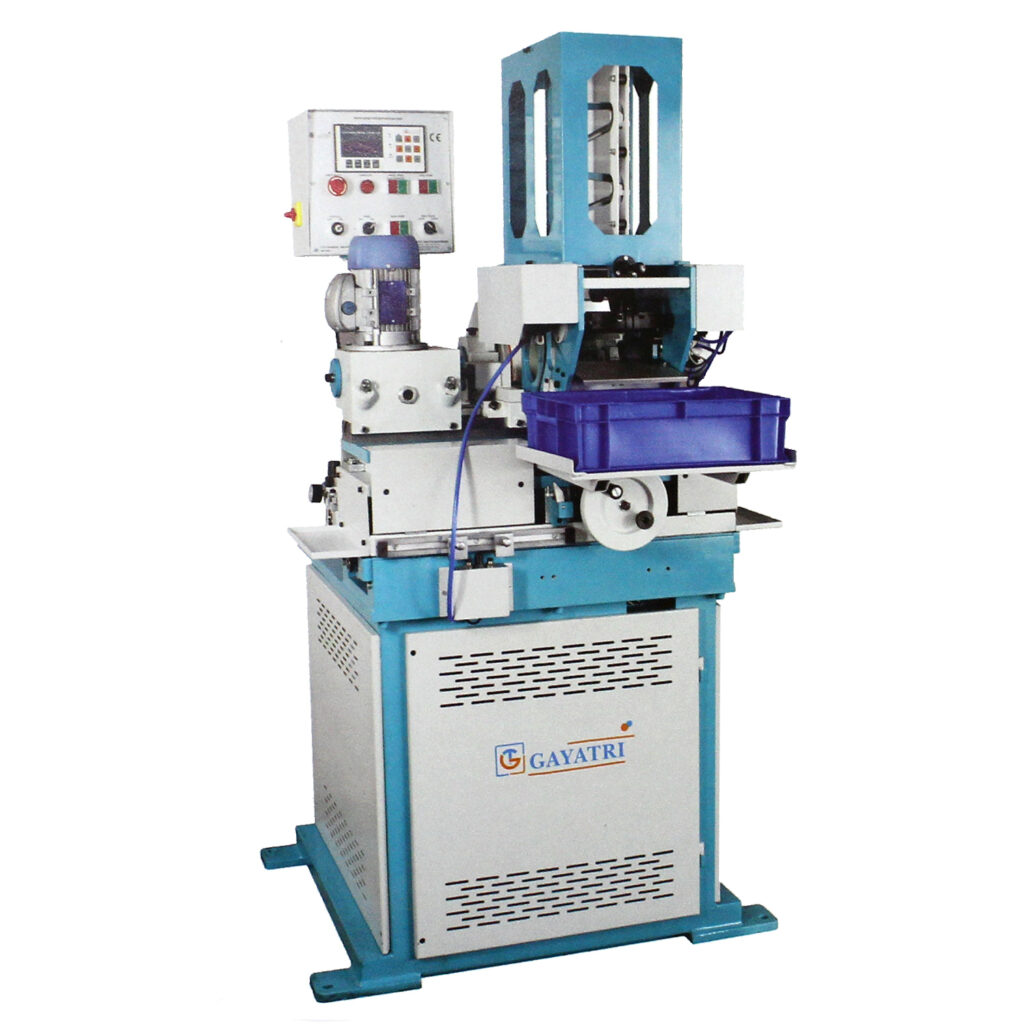

The machine has been sophistically designed and constructed to perform vibration free for high accuracy, high productivity, Superior operability with very less maintenance. Hydro – Pneumatically operated to grind R/F and S/F (Murat Airjet, Sussen, Rocos etc) Top rollers only on pneumatically operated Centreless Grinding Attachment with 200 mm. Wide emery having surface finish/accuracy as per international standards. To load 75 to 80 Top rollers of R/F or S/F at a time in adjustable magazine which will come one by one for grinding automatically with auto feeding system which is controlled by digital LCD electronic timer to set grinding time. We have provided facility for Dressing of Grinding Stone. The machine is equipped with dust extraction unit. You can change only holder as per top roller drafting.
Net/Gross Weight: 800 / 1100 Kgs
Size of case: L X W X H: 160 X 130 X 160 cms

The machine has been sophistically designed and constructed to perform vibration free for high accuracy, high productivity, Superior operability with very less maintenance. Hydro – Pneumatically operated to grind R/F and S/F Top rollers only after measuring pre-determined size on pneumatically operated Centreless Grinding Attachment by moving Grinding stone forward / backward and Oscillating movement Hydraulically operated with 200 mm. Wide emery having surface finish/accuracy as per international standards. To load 75 to 80 Top rollers of R/F or S/F at a time in adjustable magazine which will come one by one after measuring for grinding automatically with auto feeding system which is controlled by digital LCD electronic timer to set grinding time. Pre-Setting of the machine is done by manually as well as automatically. We have provided Automatic Dressing of Grinding Stone. The machine is equipped with dust extraction unit.
Net/Gross Weight: 1400 / 1800 Kgs
Size of case: L X W X H: 160 X 140 X 160 cms
Size of case: L X W X H: 110 X 85 X 160 cms

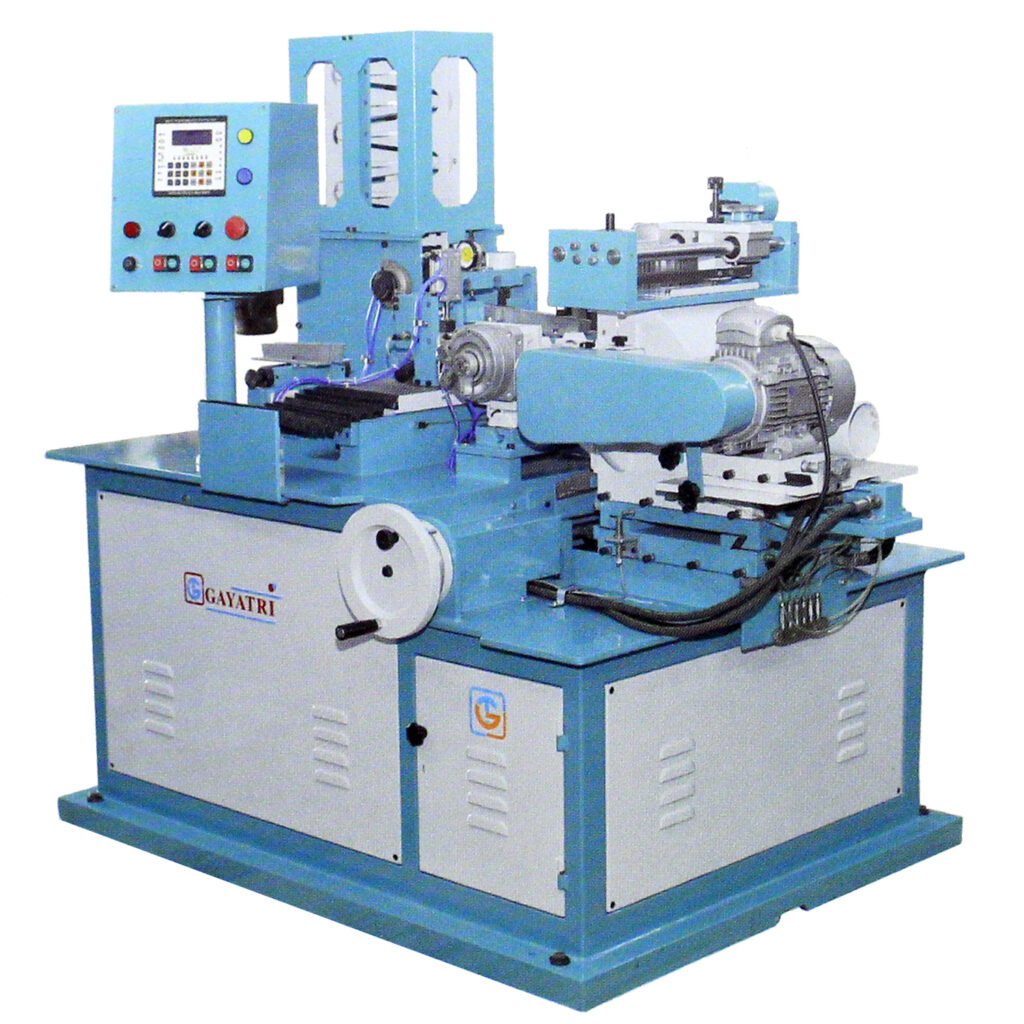

The machine has been sophistically designed and constructed to perform vibration free for high accuracy, high productivity, Superior operability with very less maintenance. Hydro – Pneumatically operated to grind R/F and S/F (Murat Airjet, Sussen, Rocos etc) Top rollers only on pneumatically operated Centreless Grinding Attachment with 200 mm. Wide emery having surface finish/accuracy as per international standards. To load 75 to 80 Top rollers of R/F or S/F at a time in adjustable magazine which will come one by one for grinding automatically with auto feeding system which is controlled by digital LCD electronic timer to set grinding time. The machine is equipped with dust extraction unit.

You can use another side to grind longer like Draw Frame, Comber etc are grinded between centreby the help of MT2 Dead Centre with 25mm wide emery and hydraulically operated table traverse motion. Also we have made a provision that we have provided system for 200mm. Wide emery attachment with hydro pneumatically operated Centreless Grinding attachment suitable to grind all kinds of R/F & S/F top rollers as an optional.
Net/Gross Weight: 1400 / 1800 Kgs & 250 / 450 Kgs
Size of case: L X W X H: 180 X 150 X 165 cms
Size of case: L X W X H: 180 X 85 X 160 cms
